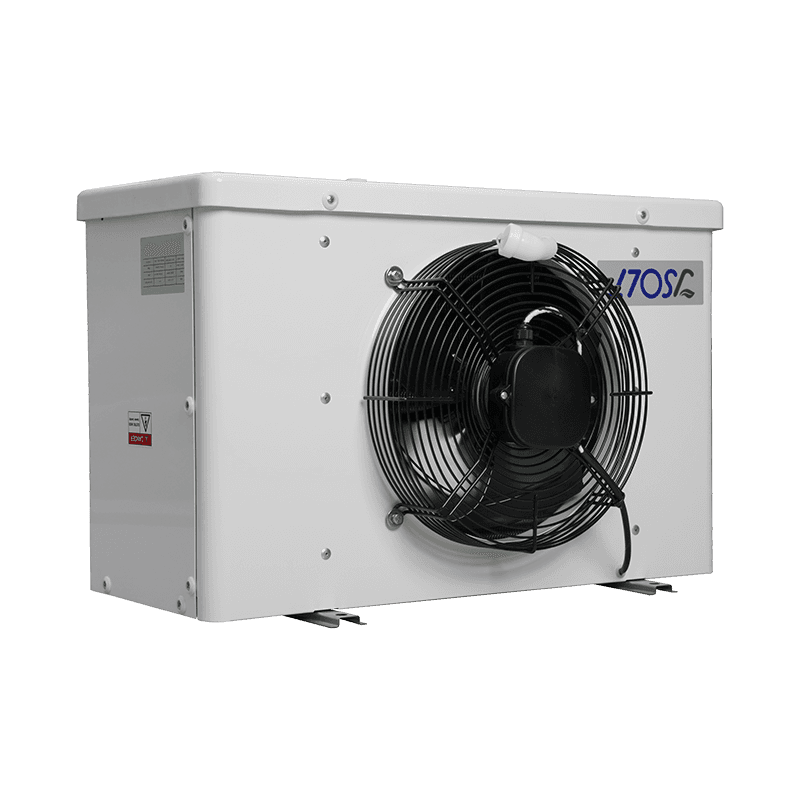

Constant Temperature And Humidity Cold Storage Condensing Unit

General features:
The highly efficient coils are made from high quality copper tube Ф12 mm and special profile aluminium fins, Heat exchangers are supplied
clean and tested under a pressure of 30 bars.
The casing:
White powder coated aluminium, high corrosion strength, impact resistance, and does not produce polluting debris.

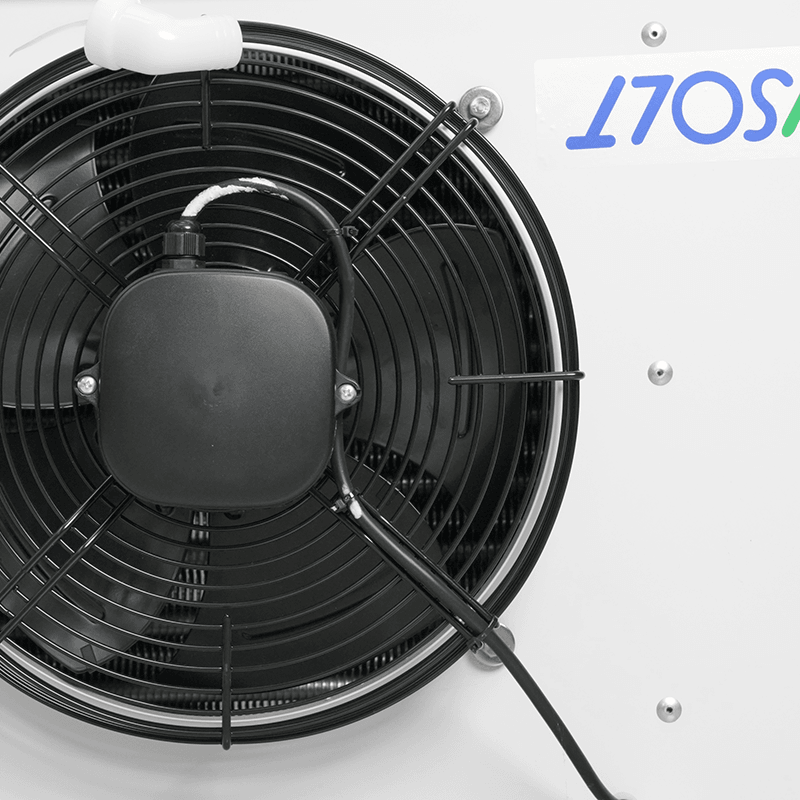

The fan motors:
All with high quality axial fan motors with high safety standards fitted well to the unit casing with an anti-vibration system.
Defrost heating:
Provided by stainless steel heater elements covered by the aluminium tubes, located in the finned pack and in the drain pan.
Electrical parts and wiring:
Are connected to an earth terminal, carried out in junction box with access hiles equipped with water-proof cable grands. All materials are
selected carefully for long-term reliability.

Inquiry Us

PREV: No previous product
NEXT: Air Cooler Refrigeration & Heat Exchange Equipment

Product Description

Taizhou Best Refrigeration Equipment Manufacturing Co., Ltd +86-18082061600

Taizhou Best Refrigeration Equipment Manufacturing Co., Ltd [email protected]

FHVT Series Evaporator

Fin spacing 4 mm, with heater, Rt>0℃

Model	Capacity R404A/R507A(kw)		Surface (m²)	Tube Volume (dm³)	Dimensions(mm)							N.W. (kg)	Connection (∮mm)
	t=-8℃	f =-25℃			Dimensions(mm)								Connection (∮mm)
	t=-8℃	f =-25℃			A	B	C	D	E	F	G		Inlet	outlet
	DTI=8K	DTI=7K			A	B	C	D	E	F	G		Inlet	outlet
FHVT 2501 09 4D	1.73	1.26	9	1.8	702	420			430	385	200	14	12	16
FHVT 2502 17 4D	3.35	2.44	17	3.2	1094	812			430	385	200	25	12	19
FHVT 2503 26 4D	7.91	3.58	26	4.7	1486	1204			430	385	200	36	12	22
FHVT 2504 35 4D	6.55	4.78	35	6.1	1878	1596			430	385	200	47	12	22
FHVT 2506 52 4D	10.00	7.33	52	8.7	2662	2380	798	787	430	385	250	70	15	28
FHVT 3001 12 4D	2.41	1.76	12	2.4	702	420			430	495	200	19	12	19
FHVT 3002 23 4D	4.89	3.57	23	4.3	1094	812			430	495	200	32	12	22
FHVT 3003 35 4D	7.41	5.40	35	6.2	1486	1204			430	495	250	46	12	22
FHVT 3004 46 4D	9.75	7.11	46	8.2	1878	1596			430	495	250	60		28
FHVT 3006 69 4D	14.70	10.70	69	11.6	2662	2380	798	784	430	495	300	85	15	28
FHVT 4001 20 4D	4.63	3.33	20	3.5	884	602			460	564	250	30	15	18
FHVT 4002 40 4D	8.97	6.46	40	7.2	1486	1204	602		460	565	300	57	12	22
KHVT 4003 54 4D	11.32	8.15	54	9.6	1878	1596	551	494	460	565	300	73	15	28
FHVT 4004 81 4D	18.73	13.49	81	14.4	2662	2380	597	593	460	565	350	109	15	35
FHVT 4501 31 4D	6.75	4.92	31	5.5	1094	812			460	635	300	41	12	22
FHVT 4502 61 4D	13.50	9.84	61	10.5	1878	1596	798		460	635	300	82	15	28
FHVT 4503 92 4D	19.00	13.90	92	15.5	2662	2380	798	784	460	635	350	122	15	35

Mark: Optional model without heater available

Electric data

Model	Axial Fans							Electric Defrost
Model	Diameter (∮mm)	N⁰	Voltage (V,50/60Hz)	Power (W)	Current (A)	Air Flow (m³/h)	Throw (m)	Coil (W)	Drain Pan (W)	Total (W)
FHVT 2501 09 4D	250	1	~220	45/60	0.21/0.28	1000	4	2x440	1x440	1320
FHVT 2502 17 4D	250	2	~220	90/120	0.42/0.56	2000	6	2x730	1x730	2190
FHVT 2503 4D	250	3	~220	135/180	0.63/0.84	3000	/	2x1030	1x1030	3090
FHVT 2504 35 4D	250	4	~220	180/240	0.84/1.12	4000	8	2x1310	1x1310	3930
FHVT 2506 52 4D	250	6	~220	270/360	1.26/1.68	6000	11	2x1890	1x1890	5670
FHVT 3001 12 4D	300	1	~220	87/105	0.44/0.48	1930	5	3x440	1x440	1760
FHVT 3002 23 4D	300	2	~220	174/210	0.88/0.96	3860	7	3x730	1x730	2920
FHVT 3003 35 4D	300	3	~220	261/315	1.32/1.44	5790	10	3x1030	1x1030	4120
FHVT 3004 46 4D	300	4	~220	348/420	1.76/1.92	7720	11	3x1310	1x1310	5240
FHVT 3006 69 4D	300	6	~220	522/630	2.64/2.88	11580	12	3x1890	1x1890	7560
FHVT 4001 20 4D	400	1	~220	170/240	0.83/1.05	4030	7	4x550	1x550	2750
PH VT 4002 40 4D	400	2	~220	340/480	1.66/2.10	8060	10	4x1030	1x1030	5150
FHVT 4003 54 4D	400	3	~220	510/720	2.49/3.15	12090	11	4x1310	1x1310	6550
FHVT 4004 81 4D	450	4	~220	680/960	3.32/4.20	16120	13	4x1890	1x1890	9450
FHVT 44501 31 4D	450	1	~220	120/310	1.08/1.40	5400	9	4x730	1x730	3650
FHVT 4502 61 4D	450	2	3-380	460/620	1.32/1.16	10800	11	4x1310	1x1310	6550
FHVT 4503 92 4D	450	3	3-380	690/930	1.98/1.74	16200	13	4x1890	1x1890	9450

Selection Diagram

FHVT 4/D series

FHVT Series Evaporator

Fin spacing 6 mm, with heater, Rt>-18℃

Model	Capacity R404A/R507A(kw)		Surface (m²)	Tube Volume (dm³)	Dimensions(mm)							N.W. (kg)	Connection (∮mm)
	t=-8℃	t=-25℃			Dimensions(mm)								Connection (∮mm)
	t=-8℃	t=-25℃			A	B	C	D	E	F	G		Inlet	Outlet
	DTI=8K	DTI=7K			A	B	C	D	E	F	G		Inlet	Outlet
FHVT 2501 06 6D	1.46	1.06	6	1.5	702	420			430	385	200	13	12	16
FHVT 2502 11 6D	2.81	2.05	11	3.2	1094	812			430	385	200	23	12	19
FHVT 2503 17 6D	4.13	3.01	17	4.7	I486	1204			430	385	200	33	12	22
FHVT 2504 23 6D	5.51	4.02	23	6.1	1878	1596			430	385	200	43	12	22
FHVT 2506 35 6D	8.44	6.16	35	8.7	2662	2380	798	787	430	385	250	66	15	28
FHVT 3001 08 6D	2.03	1.48	8	2.4	702	420			430	495	200	18	12	19
FHVT 3002 15 6D	4.11	3.00	15	4.3	1094	812			430	495	200	30	12	22
FHVT 3003 23 6D	6.23	4.54	23	6.2	1486	1204			430	495	250	43	12	22
FHVT 3004 31 6D	8.19	5.98	31	8.2	1878	1596			430	495	250	56	15	28
FHVT 3006 46 6D	12.30	8.99	46	11.6	2662	2380	798	784	430	495	300	83	15	28
FHVT 4001 13 6D	3.89	2.80	13	3.5	884	602			460	565	250	28	12	18
FHVT 4002 27 6D	7.53	5.43	27	7.2	1486	1204	602		460	565	300	53	15	22
FHVT 4003 36 6D	9.51	6.85	36	9.6	1878	1596	551	494	460	565	300	68	15	28
FHVT 4004 54 6D	15.73	11.33	54	14.4	2662	2380	597	593	460	565	350	103	15	35
FHVT 4501 20 6D	5.67	4.13	20	5.5	1094	812			460	635	300	38	12	22
FHVT 4502 41 6D	11.30	8.27	41	10.5	1878	1596	798		460	635	300	75	15	28
FHVT 4503 61 6D	16.00	11.70	61	15.5	2662	2380	798	784	460	635	350	115	15	35

Mark: Optional model without heater available

Electric data

Model	Axial Fans							Electric Defrost
Model	Diameter (∮mm)	N⁰	Voltage (V,50/60Hz)	Power (W)	Current (A)	Air Flow (m³/h)	Throw (m)	Coil (W)	Drain Pan (W)	Total (W)
FHVT 2501 06 6D	250	1	~220	45/60	0.21/0.28	1050	4	2x440	1x440	1320
FHVT 2502 11 6D	250	2	~220	90/120	0.42/0.56	2100	6	2x730	1x730	2190
FHVT 2503 17 6D	25U	3	~220	135/180	0.63/0.84	3150	7	2x1030	1x1030	309U
FHVT 2504 23 6D	250	4	~220	180/240	0.84/1.12	4200	8	2x1310	1x1310	3930
FHVT 2506 35 6D	250	6	~220	270/360	1.26/1.68	6300	44	2x1890	1x1890	5670
FHVT 3001 08 6D	300	1	~220	87/105	0.44/0.48	1990	5	3x440	1x440	1760
FHVT 3002 15 6D	300	2	~220	174/210	0.88/0.96	3980	7	3x730	1x730	2920
FHVT 3003 23 6D	300	3	~220	261/315	1.32/1.44	5970	10	3x1030	1x1030	4120
FHVT 3004 31 6D	300	4	~220	348/420	1.76/1.92	7960	44	3x1310	1x1310	5240
FHVT 3006 46 6D	300	6	~220	522/630	2.64/2.88	11940	12	3、x1890	1x1890	7560
FHVT 4001 I36D	400	1	~220	170/240	0.83/1.05	4235	7	4x550	1x550	2750
FHVT 4002 27 6D	400	2	~220	340/480	1.66/2.10	847	10	4x1030	1x1030	5150
FHVT 4003 36 6D	400	3	~220	510/720	2.49/3.15	12705	11	4x1310	1x1310	6550
FHVT 4004 54 6D	450	4	~220	680/960	3.32/4.20	16940	13	4x1890	1x1890	9450
FHVT 4501 20 6D	450	1	~220	120/310	1.08/1.40	5500	9	4x730	1x730	3650
FHVT 4502 41 6D	450	2	3-380	460/620	1.32/1.16	11000	11	4x1310	1x1310	6550
FHVT 4503 61 6D	450	3	3-380	690/930	1.98/1.74	16500	13	4x1890	1x1890	9450

Selection Diagram

FHVT 6/D series

FHVT Series Evaporator

Fin spacing 9 mm, with heater, Rt>-25℃

Model	Capacity R404A/R507A(kw)		Surface (m²)	Tube Volume (dm³)	Dimensions(mm)							N.W. (kg)	Connection (∮mm)
	t=-8℃	t=-25℃			Dimensions(mm)								Connection (∮mm)
	t=-8℃	t=-25℃			A	B	C	D	E	F	C		Inlet	Outlet
	DTI=8K	DTI=7K			A	B	C	D	E	F	C		Inlet	Outlet
FHVT 2501 04 9D	1.23	0.90	4	1.8	702	420			430	385	200	12	12	16
FHVT 2502 08 9D	2.37	1.73	8	3.2	1094	812			430	385	200	21	12	19
FHVT 2503 12 9D	3.48	2.54	17	4 7	1486	1204			430	385	200	30	12	22
FHVT 2504 16 9D	4.64	3.38	16	6.1	I878	1596			430	385	200	39	12	22
FHVT 2506 24 9D	7.10	5.18	24	8.7	2662	2380	798	787	430	385	250	62	15	28
FHVT 3001 06 9D	1.71	1.25	6	2.4	702	420			430	495	200	17	12	19
FHVT 3002 10 9D	3.46	2.53	10	4.3	1094	812			430	495	200	2S	12	22
FHVT 3003 16 9D	5.24	3.82	16	6.2	1486	1204			430	495	250	40	12	22
FHVT 3004 21 9D	6.89	5.03	21	8.2	1878	1596			430	495	250	52	15	28
FHVT 3006 31 9D	10.34	7.56	31	11.6	2662	2380	798	784	430	495	300	81	15	28
FHVT 4001 09 9D	3.27	2.35	9	3.5	884	602			460	565	250	26	12	18
FHVT 4002 189D	6.33	4.56	18	7.2	1486	1204	602		460	565	300	49	15	22
FHVT 4003 24 9D	7.99	5.75	24	9.6	I878	1596	551	494	460	565	300	63	15	28
FHVT 4004 36 90	13.22	9.52	36	14.4	2662	2380	597	593	460	565	350	97	15	35
FHVT 4501 14 9D	4.77	3.4S	14	5.5	1094	812			460	635	300	35	12	22
FHVT 4502 28 9D	9.50	6.95	28	10.5	1878	1596	798		460	635	300	68	15	28
FHVT 4503 41 9D	13.45	9.84	41	15.5	2662	2380	798	784	460	635	350	108	15	35

Mark: Optional model without heater available

Electric data

Model	Axial Fans							Electric Defrost
Model	Diameter (∮mm)	N⁰	Voltage (V,50/60Hz)	Power (W)	Current (A)	Air Flow (m³/h)	Throw (m)	Coil (W)	Drain Pan (W)	Total (W)
FHVT 2501 04 9D	250	1	~220	45/60	0.21/0.28	1100	4	2x440	1x440	1320
FHVT 2502 08 9D	250	2	~220	90/120	0.42/0.56	2200	6	2x730	1x730	2190
FHVT 2S03 12 9D	250	3	~220	135/180	0.6J/0.84	3300	7	2、x1030	1x1030	3090
FHVT 2504 16 9D	250	4	~220	180/240	0.84/1.12	4400	8	2x1310	1x1310	3930
FHVT 2506 24 9D	250	6	~220	270/360	1.26/1.68	6600	11	2x1890	1x1890	5670
FHVT 3001 06 9D	300	1	~220	87/105	0.44/0.48	2050	5	3x440	1x440	1760
FHVT 3002 10 9D	300	2	~220	174/210	0.88/0.96	4100	7	3x730	1x730	2920
FHVT 3003 16 9D	300	3	~220	261/315	1.32/1.44	6150	10	3x1030	1x1030	4120
FHVT 3004 21 9D	300	4	~220	348/420	1.76/1.92	8200	11	3x1310	1x1310	5240
FHVT 3006 31 9D	300	6	~220	522/630	2.64/2.88	12300	12	3x1890	1x1890	7560
FHVT 4001 09 9D	400	1	~220	170/240	0.83/1.05	4460	7	4x550	1x550	2750
FHVT 4002 18 9D	400	2	~220	340/480	1.66/2.10	8920	10	4x1030	1x1030	5150
FHVT 4003 24 9D	400	3	~220	510/720	2.49/3.15	13380	11	4x1310	1x1310	6550
FHVT 4004 36 9D	450	4	~220	680/960	3.32/4.20	17840	13	4x1890	1x1890	9^50
FHVT 4501 14 9D	450	1	~220	120/310	1.08/1.40	5600	9	4x730	1x730	3650
FHVT 4502 28 9D	450	2	3-380	460/620	1.32/1.16	11200	11	4x1310	1x1310	6550
FHVT-1503 41 9D	450	3	3-380	690/930	1.98/1.74	16800	13	4x1890	1x1890	9450

Selection Diagram

FHVT 4/D series
